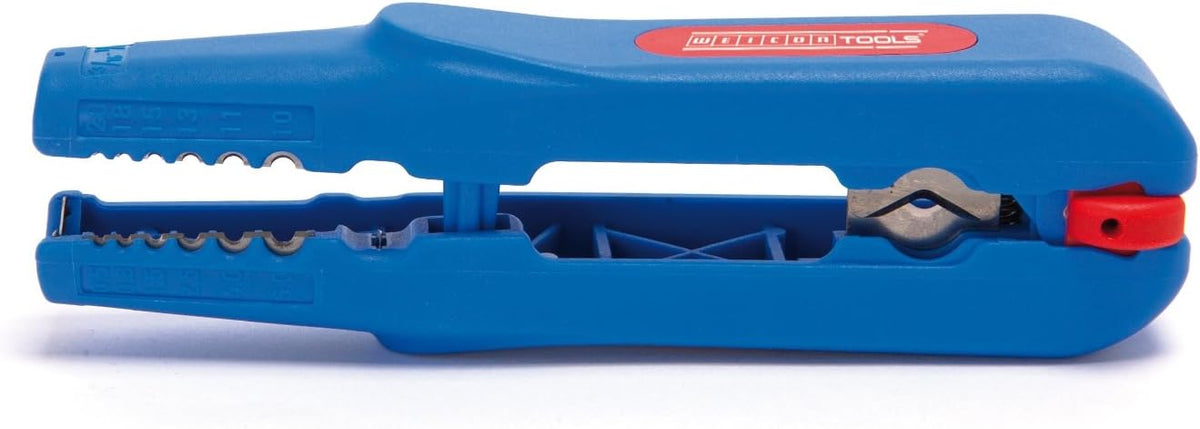

Blue/Red Multi-Stripper 155mm A6646
Blue/Red Multi-Stripper 155mm A6646
APPLICATION AREA - all-round tool for stripping and stripping all common flexible and solid conductors from 0.5 - 6.0 mm2 (20 - 10 AWG) and 8.0 - 13.0 mm ?.
PRECISION - The debarked has a pre-set blade that allows round and longitudinal cuts without adjusting the cutting depth.
ADDITIONAL FUNCTION - The No. 400 has a side cutter for cables up to 6.0 mm ?. In addition, a stripping function for conductors and strands is integrated in the housing.
QUALITY - 100% Made in Germany - Made of robust and ergonomically shaped glass-fibre reinforced polyamide / The durable blades are made of high-quality knife steel from Solingen.
SAFETY - WEICON No.400 is T��V-tested, bears the GS seal for tested safety and was developed with aspects of occupational safety and user-friendliness in mind.

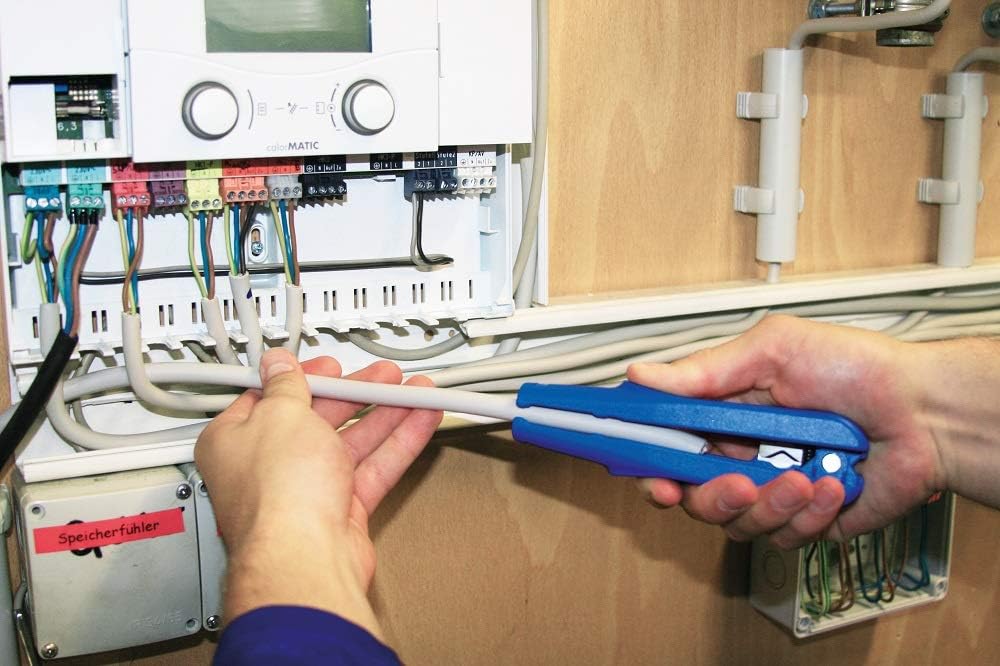

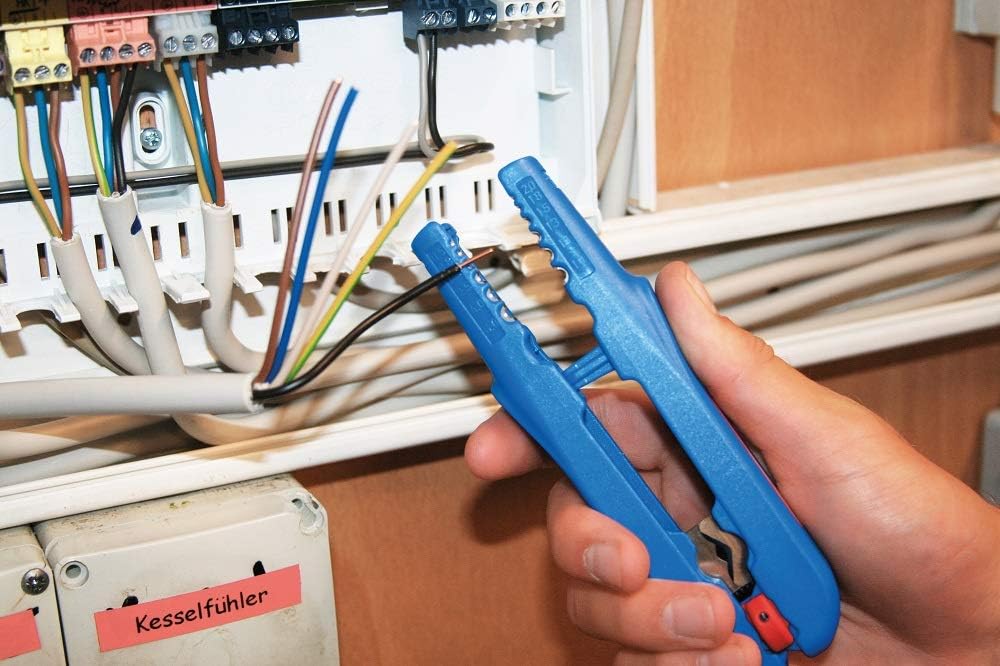

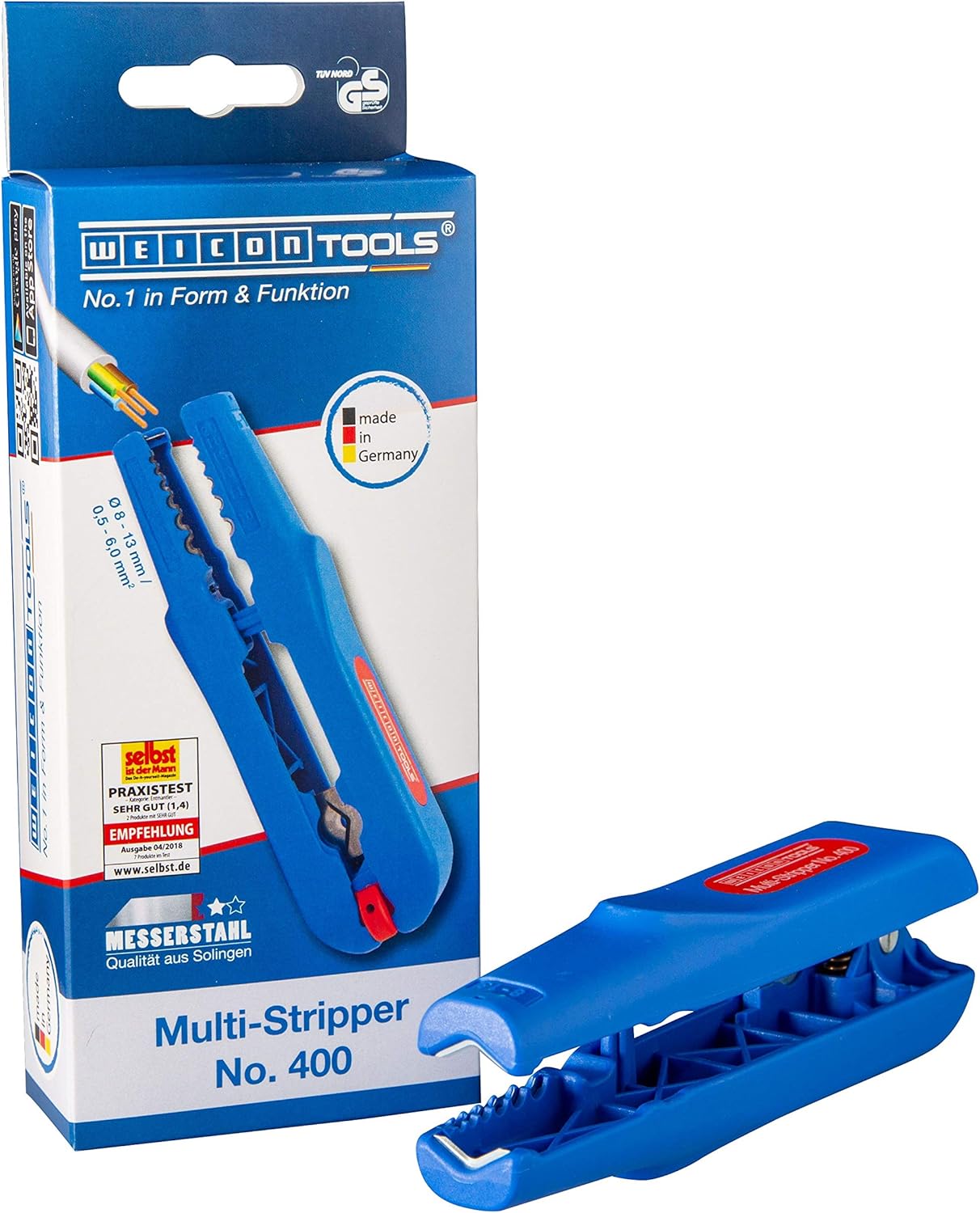

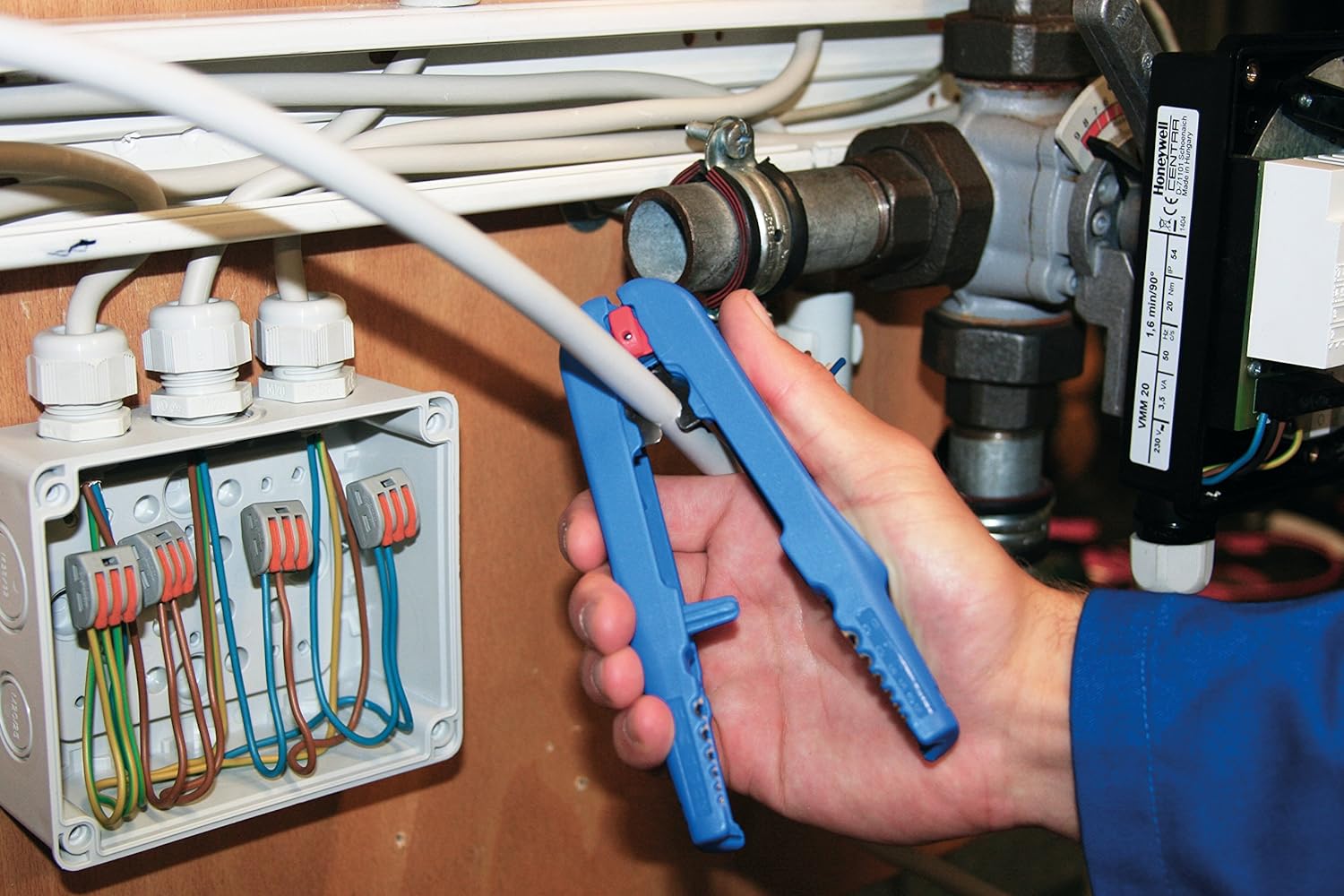

WEICON Multi-Stripper No. 400 APPLICATION AREA: The WEICON No. 400 stripper is an all-round tool for stripping all common flexible and solid conductors from 0.5 - 6.0 mm2 (20 - 10 AWG) and 8.0 - 13.0 mm ?. The tool is particularly suitable for places that are difficult to access, such as ceilings and walls, junction and distribution boxes and switch cabinets. PRECISION: The debarked has a pre-set blade that allows round and longitudinal cuts without adjusting the cutting depth. ADDITIONAL FUNCTION: The No. 400 has a side cutter for cables up to 6.0 mm ?. In addition, a stripping function for conductors and strands is integrated in the housing. QUALITY: The stripping tool is completely manufactured in Germany and is made of robust polyamide reinforced with glass fibre. The durable blades are made of high-quality knife steel from Solingen. SAFETY: This high-quality stripping pliers is T��V-tested, bears the GS seal for tested safety and was developed with aspects of occupational safety and user-friendliness in mind. Technical data Cable type: flexible and solid conductors 0.5 - 6.0 mm2 (20 - 10 AWG) and 8.0 - 13.0 mm ? Added value: 4 in 1 tools: round cut, longitudinal cut, stripping and cutting Approval/Certificate: Tested safety T��V NORD Material: glass fibre reinforced polyamide length: 155 mm Weight: 79 g
| Multi-Stripper No. 400 | Round Cable Stripper No. 13 | Quadro-Stripper No. 16 | Stripper No.100 | |
|---|---|---|---|---|

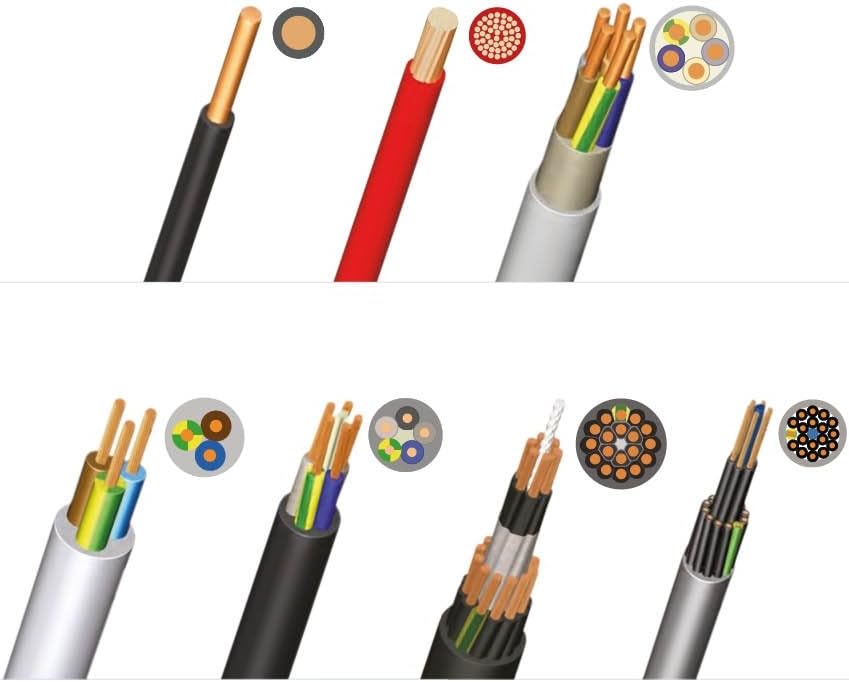

| Cable type | Fine stranded and solid conductors with PVC insulations, Round and damp room cables | Round and wet room cables | Round and damp room cables with PVC insulation | Fine stranded and solid conductors with PVC insulation, round and wet room cables |
| Application range | Outer diameter 8 -13 mm, stripping of conductors 0.5 - 6.0 mm2 (20 - 10 AWG) | Outside diameter 6 - 13 mm | Outer diameter 8 -13 mm, stripping of conductors 0.5 - 6.0 mm2 (20 - 10 AWG) | Outer diameter 4 -13 mm, stripping of conductors 0.5 - 6.0 mm2 (20 - 10 AWG) |
| Inner knife | Fixed, not interchangeable | Fixed, not interchangeable | Fixed, not interchangeable | Fixed, not interchangeable |
| Additional function | Side cutter flexible up to 6.0 mm2, solid up to 4.0 mm2 | Round cut - longitudinal cut - stripping - cutting | Length stop in housing Replaceable hook blade multiple lockable | Gradual stripping possible |
| Length | 155 mm | 140 mm | 125 mm | 135 mm |
| Range of application | Circular cut, longitudinal cut, stripping, cutting | Stripping even in hard-to-reach places, e.g. hollow wall boxes | Circular cut, longitudinal cut, stripping, dismantling; hook blade included | Circular cut, longitudinal cut, stripping, dismantling |
