550W Max 4 Ohms Midrange Car Audio Speaker C7807
550W Max 4 Ohms Midrange Car Audio Speaker C7807
MIDRANGE THAT HANDLES IT ALL - A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals.
POWER YOU CAN COUNT ON - The PRO-X8.4BM delivers an impressive 550W Max Power with 275W RMS at 4 Ohms, enough to tackle a full range of audio.
HIGH-QUALITY VOICE COIL - 1.5�� high-temperature CCAW voice coil can handle extreme heat and maintain its structural integrity meaning long life out of your speakers.
TAKE YOUR SYSTEM TO THE NEXT LEVEL - Get the most out of your system by upgrading to a speaker that gives you everything you're missing from your stock stereo. Discover what a true midrange speaker can do for you.

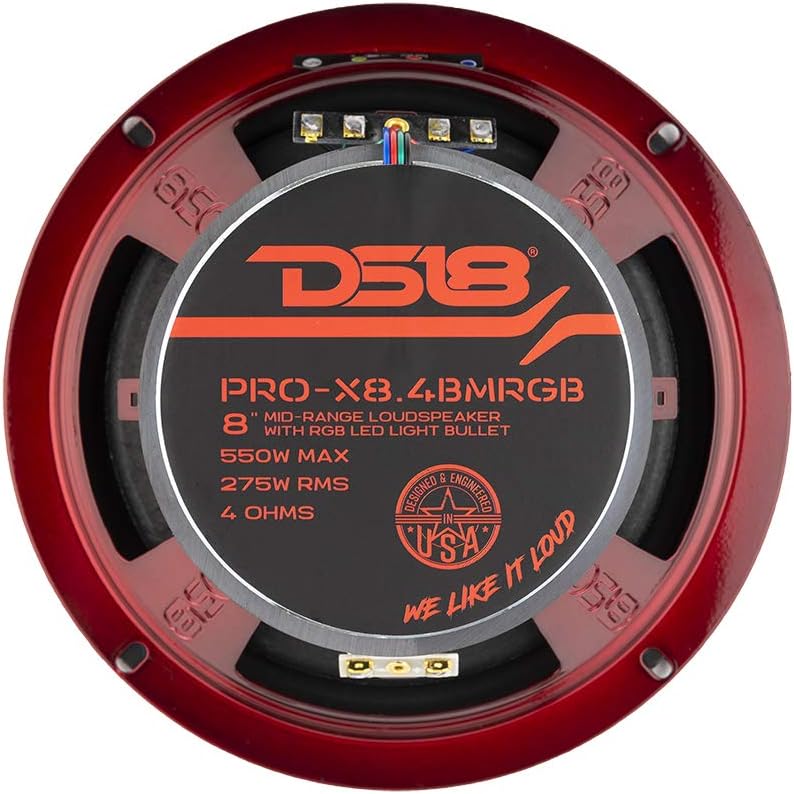

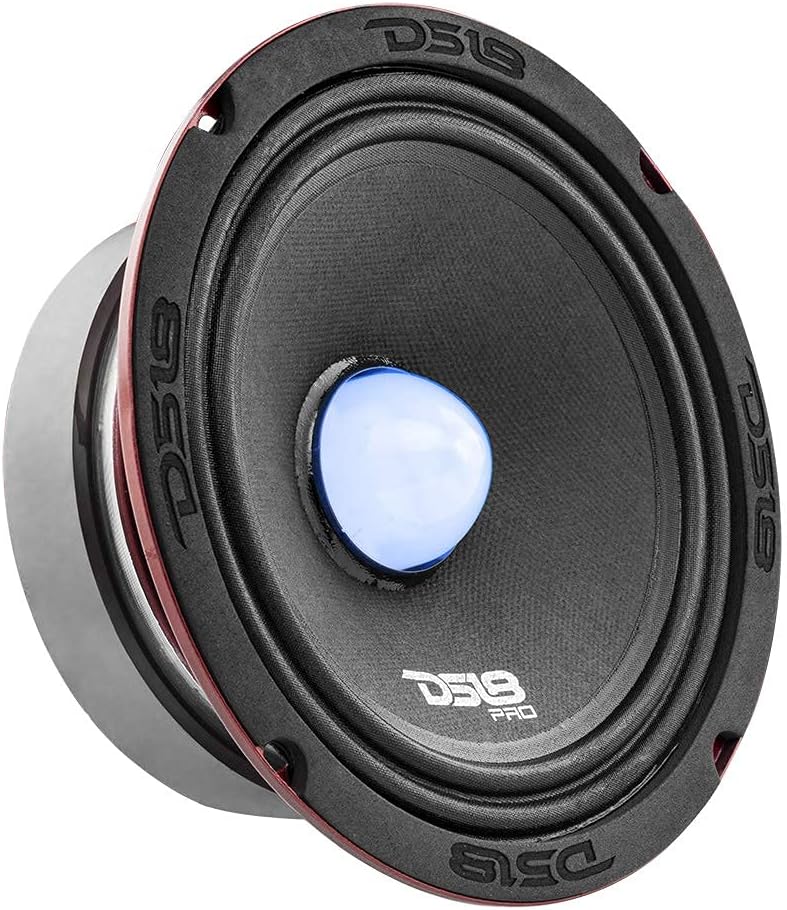

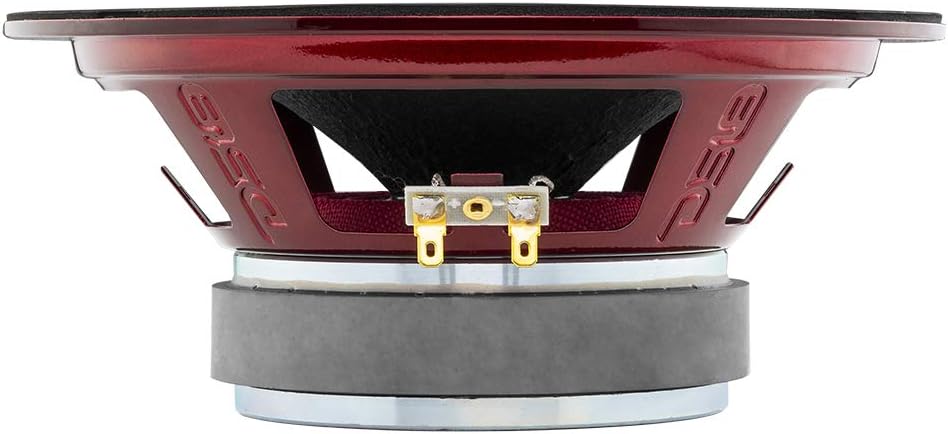

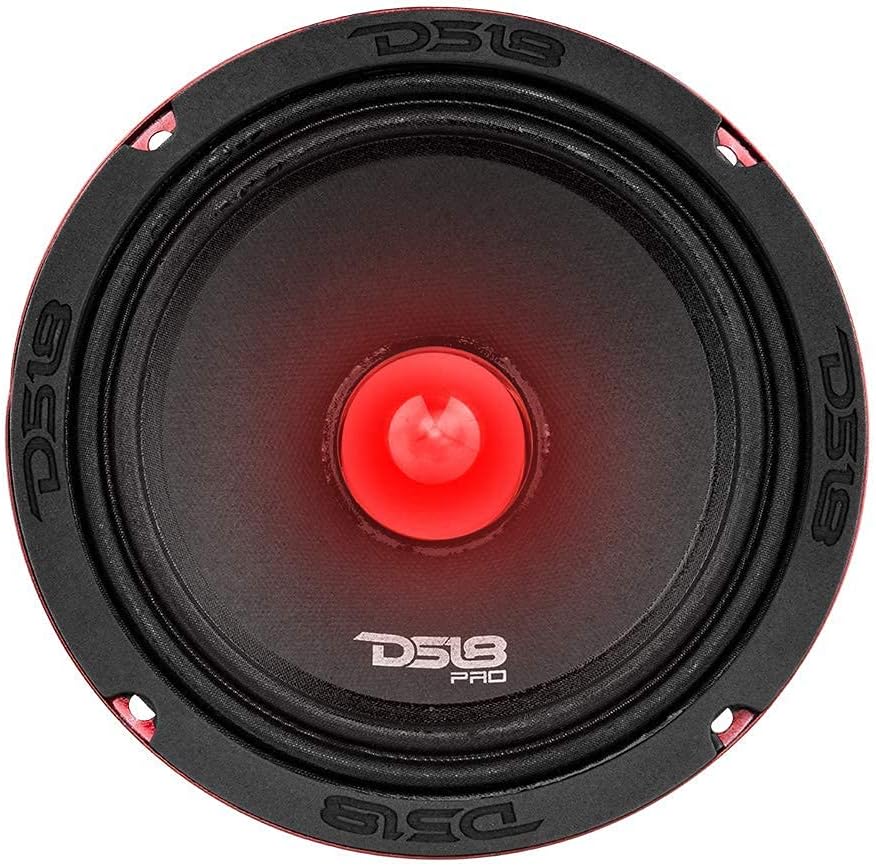

DS18 PRO-X8.4BMRGB
DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.
Specifications
Nominal Diameter 8��
Nominal Impedance 4 ohm
RMS Power Handing 275w
MAX Power Handing 550w
Sensitivity (1w/1m) 94dB
Frequency Response 125Hz-16KHz
Recommended HI Pass Crossover 120 Hz
Motor
Voice Coil Diameter 38.6mm / 1.5'
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper

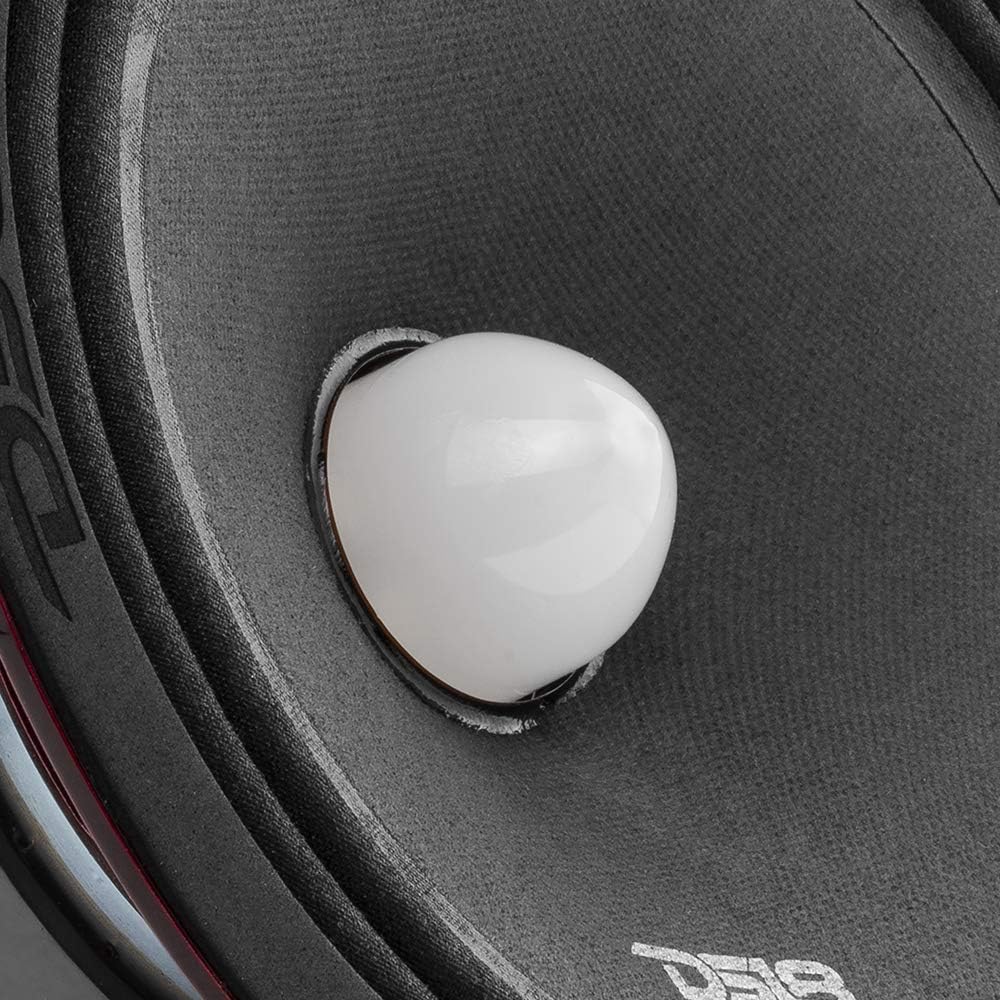

Bullet Material Translucid ABS with RGB LED
Surround Material Cloth
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 30 Oz
Displacement Volume 0.046L
Thiele & Small Parameters
Equivalent Volume Vas 7.1226L
Excursion (one way) Xmax 9.3mm
Free Air Resonance Fs 114Hz
Mechanical Factor Qms 9.052
Electrical Factor Qes 0.877
Total Factor Qts 0.8
Mechanical Mass Mms 17.699g
Mechanical Compliance Cms 0.11 m/N
BL Factor BL 6.945
Voice Coil Inductance Le 5.31mH
Cone Area Sd 213.82 cm2
CD Resistanc Re 3.2 ohms
Measurements
Overall Diameter 8.19' / 208mm
Overall Depth 3.42' / 87mm
Front Mount Baffle Cutout 7.16' / 182mm
Mouting Depth 3.18' / 81mm
Motor D
