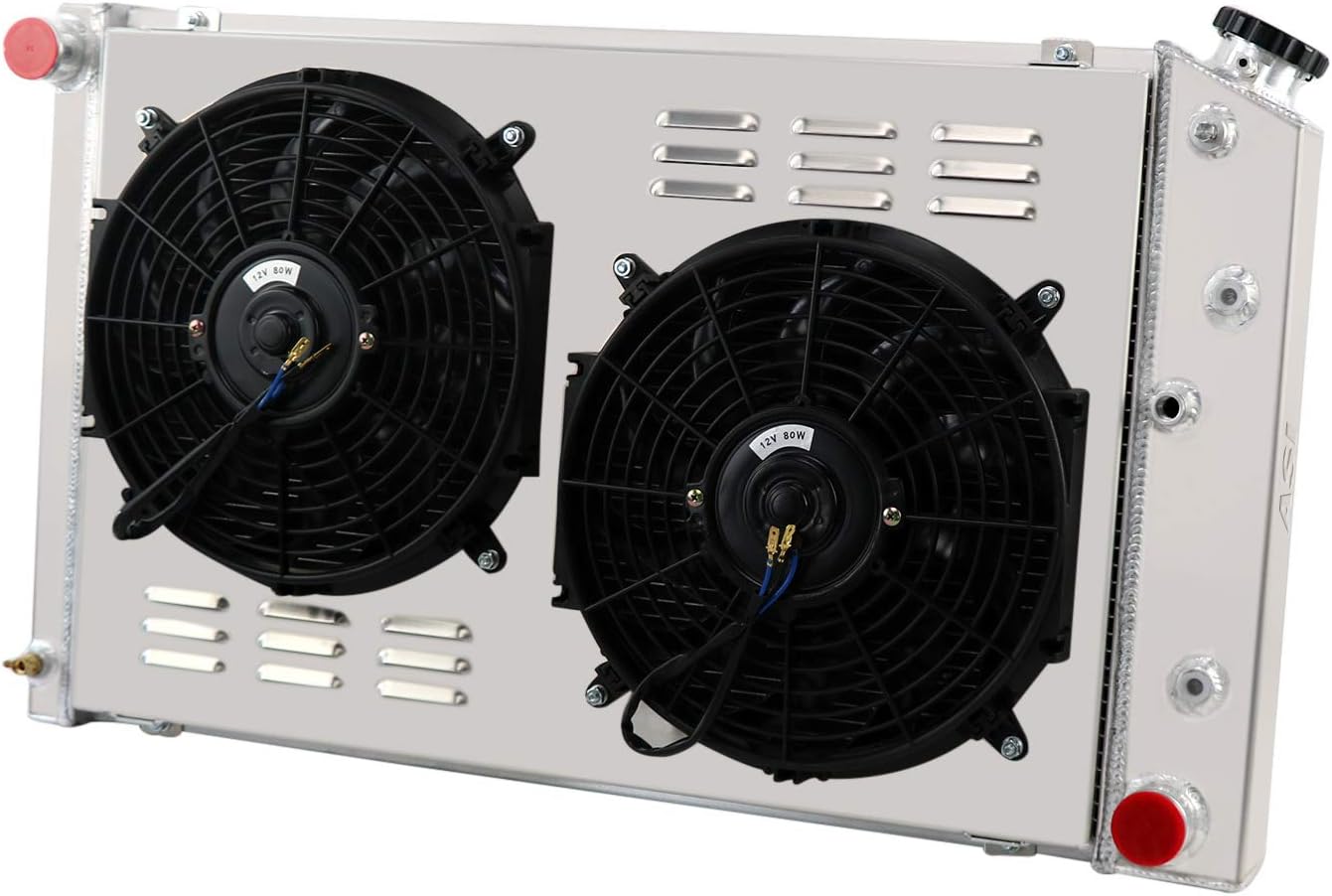

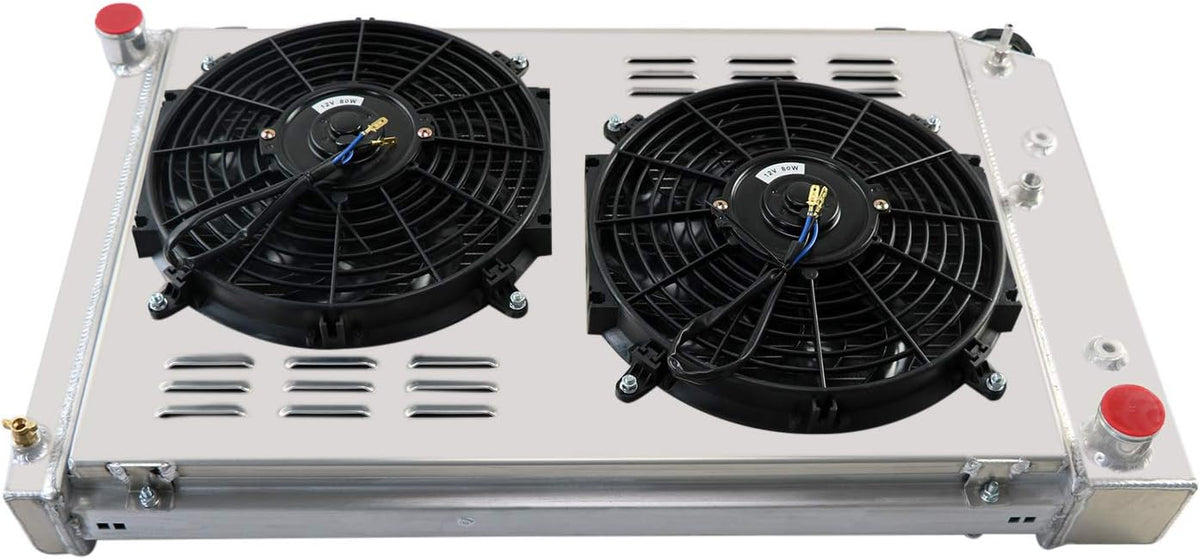

3 Row All Aluminum Radiator with Shroud Fan Assembly K60245
3 Row All Aluminum Radiator with Shroud Fan Assembly K60245

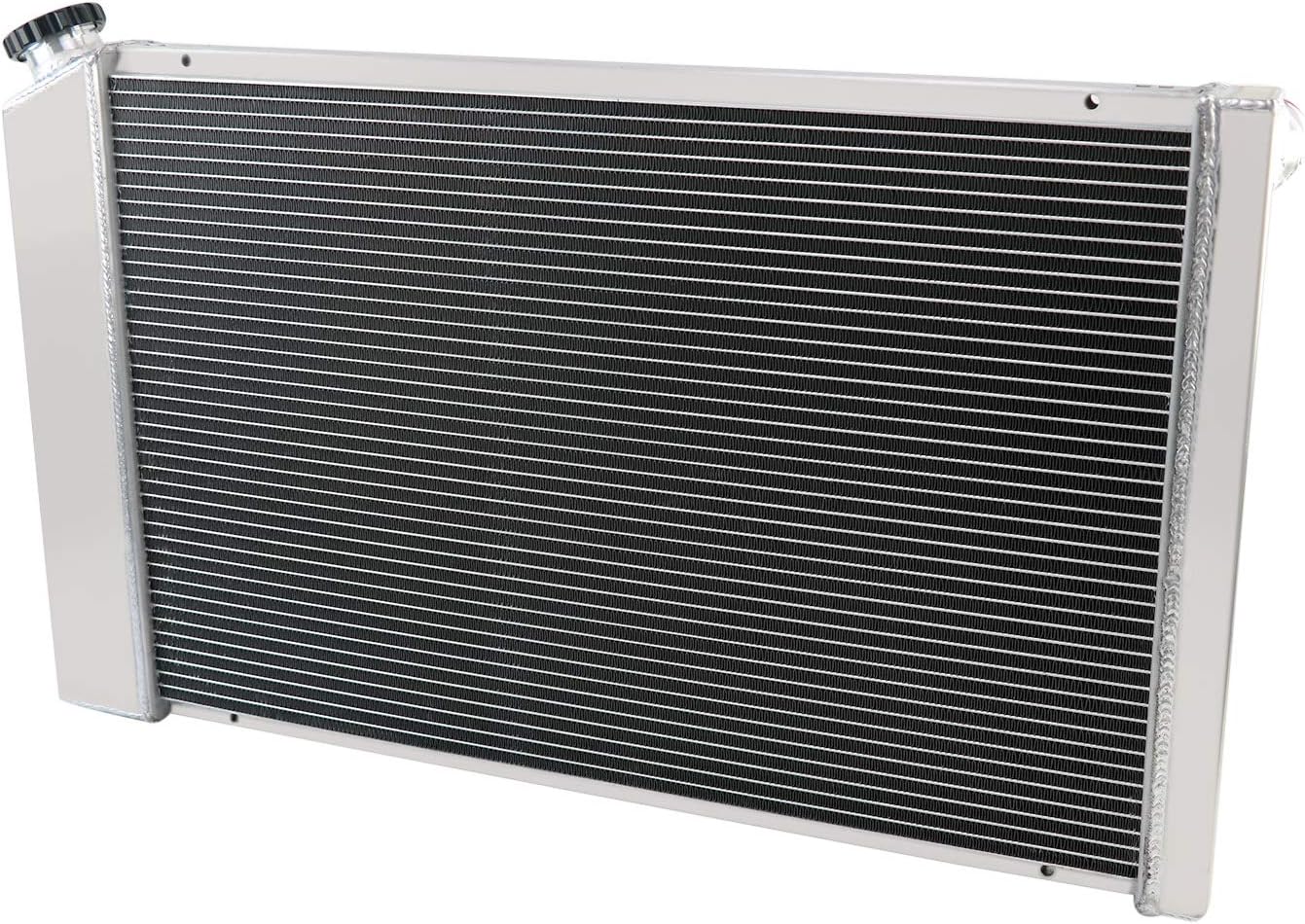

All aluminum construction & tig-welded crafts, and exclusive tube design that dramatically increases 30% cooling

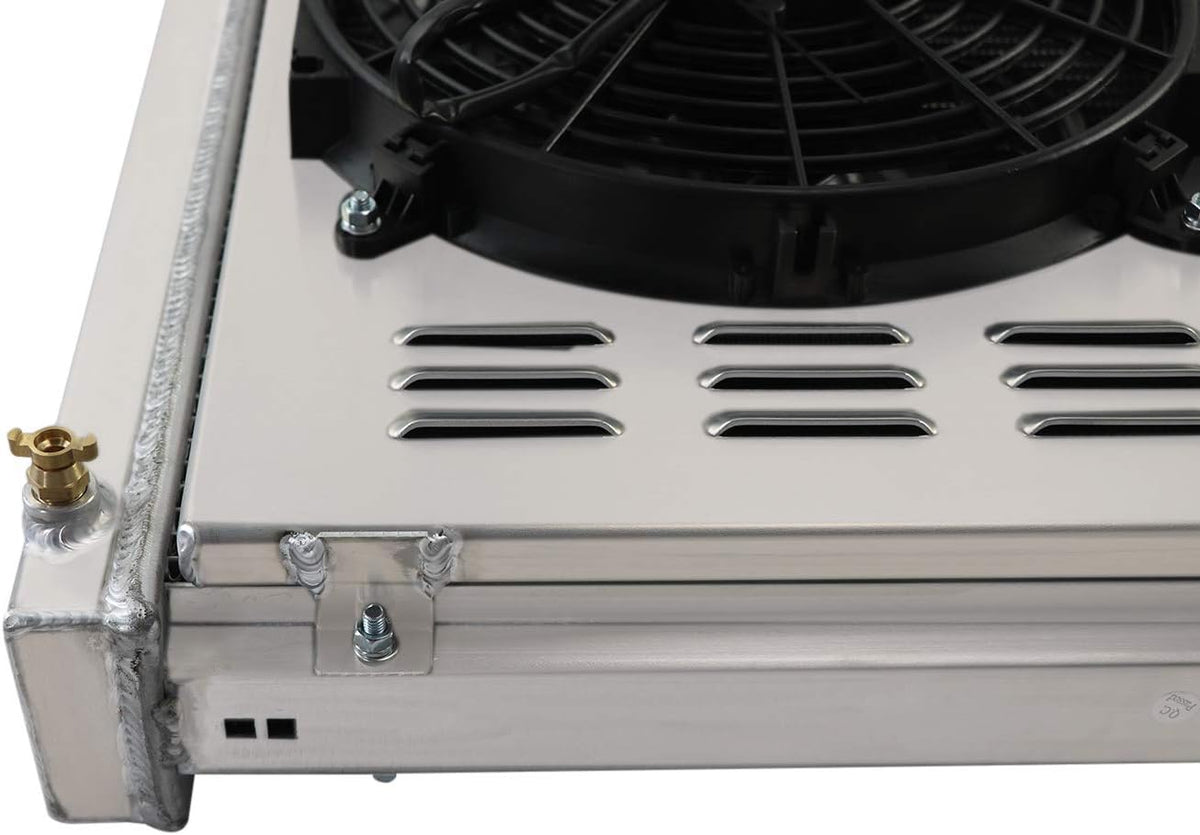

Build-in trans oil cooler and magnetic brass drain plug
Overall Size: 18-1/4' H x 31-5/8' W ;Core Size: 17' H x 26-1/4' W
Upper Inlet: 1-1/2' ;Lower Outlet: 1-1/2'
Please double check the overall width, because we have two different type radiator fit one same model
Howdy, my distinguished customers ,welcome !
This Radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM.

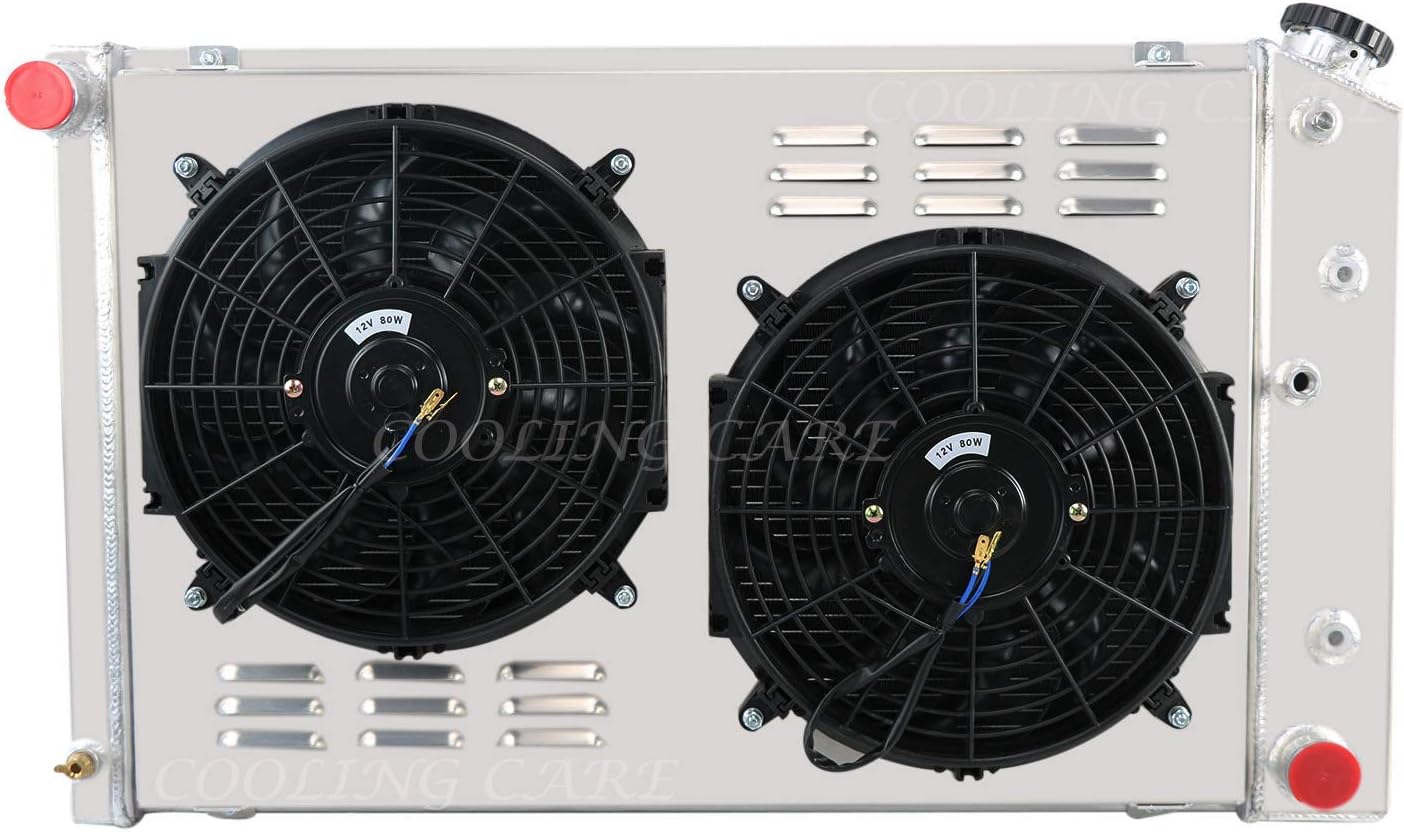

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized.

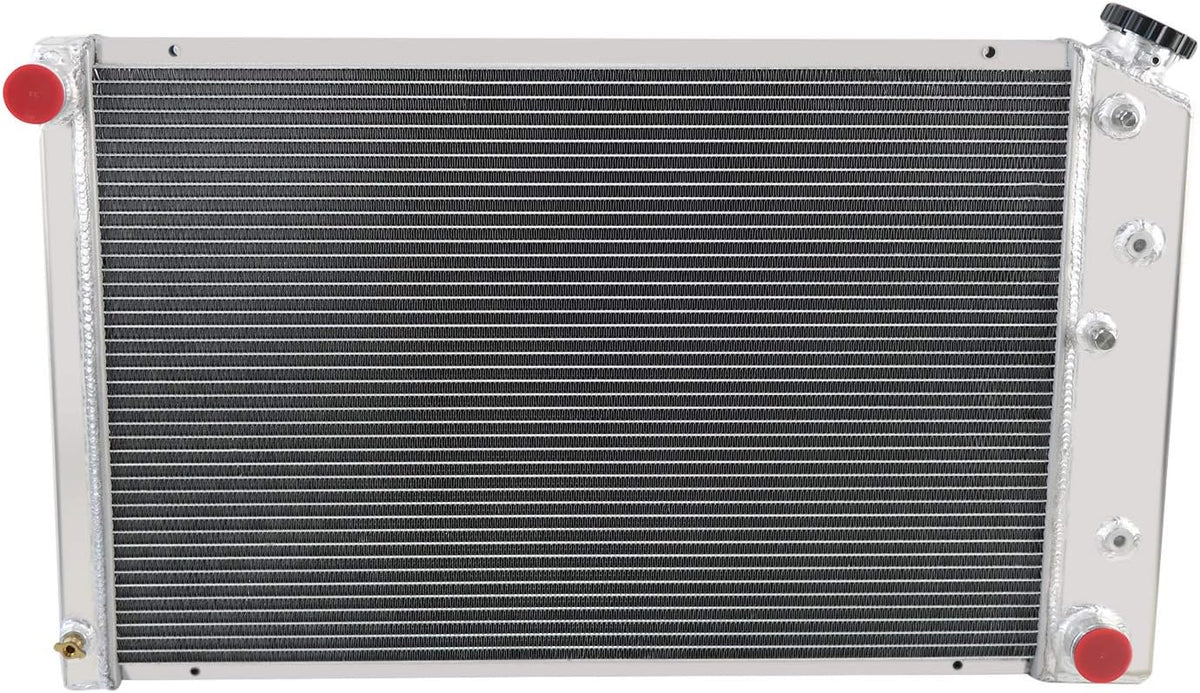

This Radiator Size:
Material: Full Aluminium
Overall Size: 18-1/4' H x 31-5/8' W
Core Size: 17' H x 26-1/4' W
Upper Inlet 1-1/2' located on the Driver side
Lower Outlet 1-1/2' located on the Passenger side
Mount Type: Saddle
This Fan Size:
Fan Diameter X Height X Thickness:12.05' X 12.05' X 2.5'
Number of Blades: 10 blades (Plastic)
Maximum Fan CFM: 1730 cfm
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm
If you need the 34 inch overall width radaitor, pls search the ASIN: B07HF32MY5/ B07H7DHR4L
